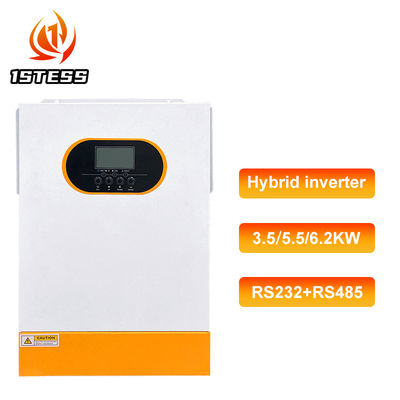

5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time

  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa COENG
Orzecznictwo CE, IEC
Numer modelu EM (PV60-500VDC) 6200 48L
Dokument EM1.5-6.2.pdf
Minimalne zamówienie 1
Szczegóły pakowania Karton, paleta
Czas dostawy 10-30 dni pracy
Zasady płatności L/C, T/T, Western Union
Możliwość Supply 20000 na miesiąc

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Rozmiar 438*295*105 mm Napięcie akumulatora 24 V/48 V.
Napięcie wejściowe 230 VAC OEM Zaakceptuj OEM
Typ falownika Hybrydowy falownik słoneczny Typ wyjściowy Pojedyncza, czysta fala sinusoidalna
Waga brutto 9 kg
Podkreślić

48V hybrid solar inverter

,

MPPT pure sine wave inverter

,

off grid solar inverter with fast transfer
Zostaw wiadomość
opis produktu

 EM3500-24L EM5500-48L EM6200-48L
Model Number EM3500-24L EM5500-48L EM6200-48L
Place of Origin China China China
Mounting Method Wall Bracket Wall Bracket Wall Bracket

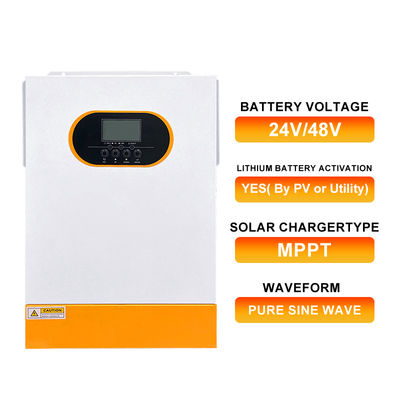

Nominal Battery Voltage (V) 24VDC 48VDC 48VDC
Lithium Battery activation YES( By PV or Utility) YES( By PV or Utility) YES( By PV or Utility)

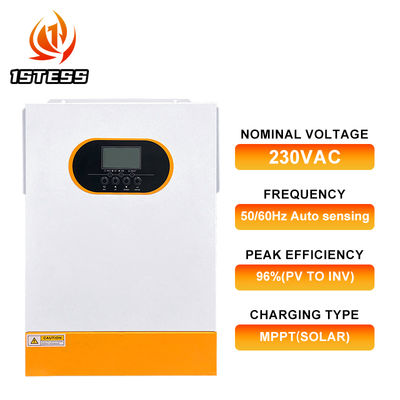

Nominal Voltage 230VAC 230VAC 230VAC
Lithium Battery communication YES(RS485) YES(RS485) YES(RS485)
Frequency 50/60Hz 50/60Hz 50/60Hz
Waveform Pure Sine wave Pure Sine wave Pure Sine wave
Solar Charger Type MPPT MPPT MPPT
Communication Interface RS232+RS485 RS232+RS485 RS232+RS485
PV Array MPPT Voltage Range 60VDC~500VDC 60VDC~500VDC 60VDC~500VDC
Surge Power 7000VA 11000VA 1240VA

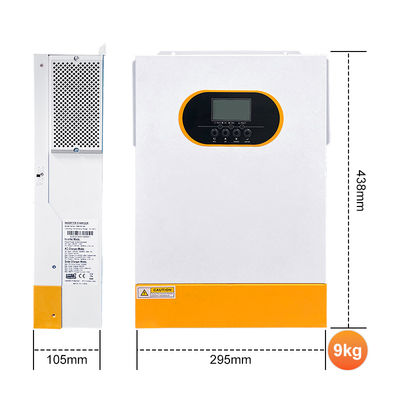

Size 358*295*100mm 438*295*105mm 438*295*105mm
Weight 7kg 9kg 9kg
Operating Temperature Range (-10'℃ to 50℃) (-10'℃ to 50℃) (-10'℃ to 50℃)
Product Features
  1. Lithium battery activation function by PV or Utility
  2. Compatible work with lifepo4 battery via Rs485
  3. PVInput 500Vdc Max
  4. Built-in MPPT60A/100A/120A
  5. Detachable dust coverforharsh environment
  6. Wifi remote monitoring optional
  7. Support multiple output priority:UTL,SOL,SBU,SUB
  8. EQ function to optimize battery performance and extend lifecycle
5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 0 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 1 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 2 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 3 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 4 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 5 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 6 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 7 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 8 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time 9
